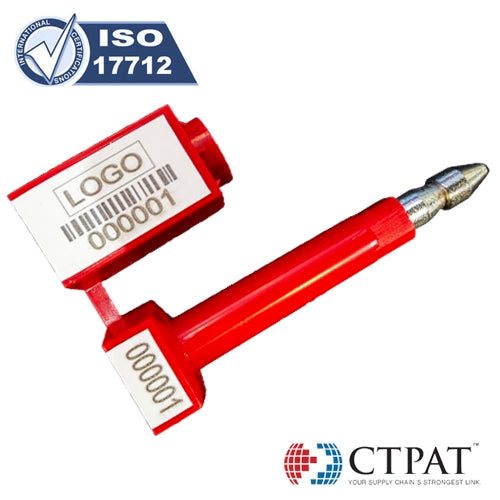

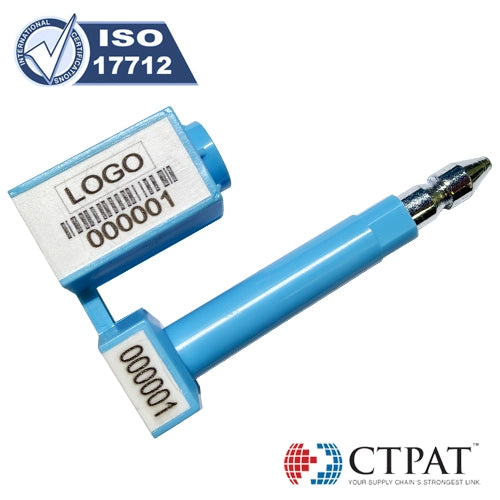

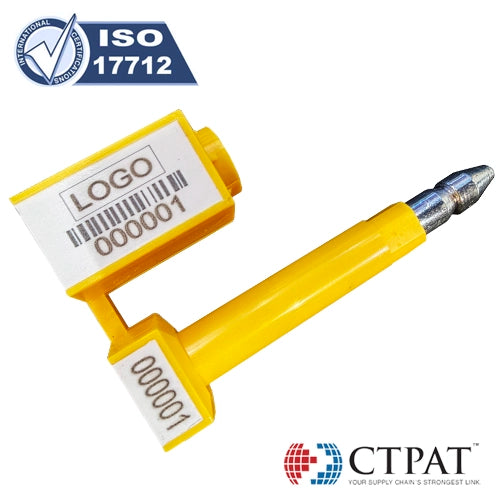

Dual Colour High Security Bolt Seal (Custom Design)
Contact us to customize your seal with logos, text, barcodes and/or serial number
Need Help? We are here to help.
Please contact us via Live Chat, e-mail sales@sealshq.com.au or call us within Australia
on 1300 920 778
PRODUCT DETAILS:
ISO17712 Certified Dual Colour High Security Bolt Seal with moulded Anti-Spin feature.
FEATURES:
• Dual colour moulded bolt seal - White marking area for barcodes and clearer marking
• Oval shaft and bolt prevents tampering via spinning the bolt
• Spring Wire locking mechanism
• Self-locking mechanism ensures easy locking without any need for tools
• Security ribs prevents hiding visual evidence of a shaft which has been cut out
• Matching serial number on bolt and shaft
• 18mm pin and bolt complies with ISO17712 standard
• Removal only with bolt cutter
PRODUCT DRAWING:

TECHNICAL SPECIFICATIONS:
Total Seal Length (Locked): 90.0mm
Total Shaft Length (Locked): 45.0mm
Tensile Strength: 1450.0kgs
Body Material: Hi-Impact ABS
Bush and Shaft Material: Hardened Carbon Steel
Locking Slip: Stainless Steel Clip
Carton Size: 53.0cm x 35.0cm x 13.0cm
Carton Weight: 19.5kgs
Carton Quantity: 250pcs
CUSTOM PRINTING:
Complete this Customisation Form after completing your order:
Printed in Sydney, NSW. Quick 24-hour Turnaround Time. Add your company logo, barcodes, custom text and graphics to your Heavy Duty 320 Security Seals.
